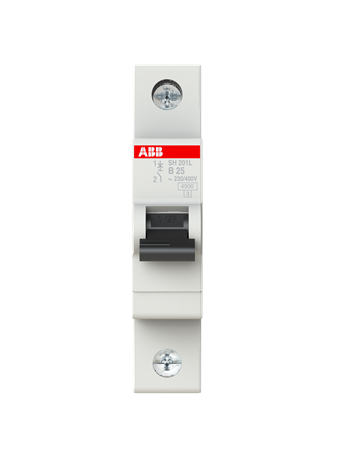

SH201L-B25 Μικροαυτοματος Β25

Technical

• Standards:IEC/EN 60898-1

• Tripping Characteristic:B

• Rated Operational Voltage:acc. to IEC 60898-1 230 / 400 V AC

• Operational Voltage:Maximum (Incl. Tolerance) 253 V AC
  Minimum 12 V AC

• Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V

• Rated Impulse Withstand Voltage (Uimp):4 kV
  at 2000 m 5 kV
  at Sea Level 6.2 kV

• Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV

• Input Voltage Type:AC

• Rated Current (In):25 A

• Rated Short-Circuit Capacity:(AC) 4.5 kA
  (230 / 400 V AC) 4.5 kA

• Rated Conditional Short-Circuit Current (Inc):(230 V) 5 kA
  (400 V) 5 kA

• Rated Frequency (f):50 / 60 Hz

• Power Loss:3.2 W
  at Rated Operating Conditions per Pole 3.2 W

• Power Supply Connection:Arbitrary

• Contact Position Indication:ON / OFF

• Energy Limiting Class:3

• Electrical Endurance:20000 AC cycle

• Mechanical Endurance:20000 cycle

• Number of Poles:1

• Number of Protected Poles:1

• Overvoltage Category:III

• Product Range:SH200L

• Tightening Torque:2 N·m

• Actuator Type:Toggle

• Screw Terminal Type:Cage Terminal

• Actuator Marking:I / O

• Actuator Material:Insulation Group II, Black, Sealable

• Housing Material:Insulation Group II, RAL 7035

• Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Mounting Position:any

• Recommended Screw Driver:Pozidriv 2

• Accessories Available:No

• Connecting Capacity:Conductor 25 / 25 mm²
  Flexible with Ferrule 0.75 ... 16 mm²
  Flexible 0.75 ... 16 mm²
  Rigid 0.75 ... 25 mm²
  Stranded 0.75 ... 25 mm²

• Installation Size:acc. to DIN 43880 1

• Terminal Type:Screw Terminals


Environmental

• Ambient Air Temperature:Operation -25 ... +55 °C
  Storage -40 ... +70 °C

• Reference Ambient Air Temperature:30 °C

• Degree of Protection:IP20
  Enclosure with Cover IP40

• Pollution Degree:2

• Environmental Conditions:28 cycles
  with 55 °C / 90-96 %
  and 25 °C / 95-100 %

• Resistance to Vibrations acc. to IEC 60068-2-6:5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In

• Resistance to Shock acc. to IEC 60068-2-27:25g / 2 shocks / 13 ms

• RoHS Status:Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

• Environmental Information:2CDK400030D0201

• REACH Declaration:9AKK107492A1906


Dimensions

• Width in Number of Modular Spacings:1

• Product Net Width:17.5 mm

• Product Net Height:85 mm

• Product Net Depth / Length:69 mm

• Product Net Weight:0.125 kg

• Pole Net Weight:0.125 kg

• Built-In Depth (t2):69 mm


Container Information

• Package Level 1 Units:carton 10 piece

• Package Level 1 Width:92 mm

• Package Level 1 Height:80 mm

• Package Level 1 Depth / Length:183 mm

• Package Level 1 Gross Weight:1.29 kg

• Package Level 1 EAN:4016779633055

• Package Level 2 Units:carton 120 piece

• Package Level 2 Width:275 mm

• Package Level 2 Height:210 mm

• Package Level 2 Depth / Length:395 mm

• Package Level 2 Gross Weight:16 kg

• Package Level 2 EAN:4016779989107


Ordering

• Minimum Order Quantity:1 piece

• Customs Tariff Number:85362010

• Country of Origin:Germany (DE)


Certificates and Declarations (Document Number)

• Certification Agency:EN
  IEC

• Declaration of Conformity - CE:2CDK400607D2703

• Environmental Information:2CDK400030D0201

• Instructions and Manuals:2CDS207105P0001

• REACH Declaration:9AKK107492A1906

• RoHS Information:2CDK400030D0201


Popular Downloads

• Data Sheet, Technical Information:2CSC400030D0202

• Instructions and Manuals:2CDS207105P0001


Classifications

• ETIM 7:EC000042 - Miniature circuit breaker (MCB)

• ETIM 8:EC000042 - Miniature circuit breaker (MCB)

• EPLAN Catalog Tree:Electrical engineering / Protection devices / General

• EPLAN Function Definition:Circuit breaker / Single circuit breaker / Circuit breaker 1_2

• WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)

• WEEE B2C / B2B:Business To Business

• CN8:8536 20 10

• UNSPSC:39121603

• eClass:V11.0 : 27141901

• IDEA Granular Category Code (IGCC):4897 >> Miniature circuit breakers

• Object Classification Code:F
